Main Features

  • Industrial Panel PC Touch Screen
  • Low consumption ‘fanless’ solution
  • Capacitive or resistive, single or multi touch displays
  • Low-profile models from 8” to 24”
  • CPU J1900 2.0 GHz Quad Core processor
  • LAN (2), COM (4), USB (4) interfaces
  • Windows 10 IoT Operating System
  • Bundled with Winlog Pro SCADA software
winlog Application

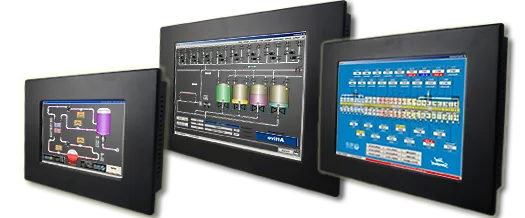

PClog is a family a wide range of “touch screen” PCs suited for front cabinet mounting (panel PCs) and available in “Industrial Touch” and “Multi-Touch” versions. The “Industrial Touch” version, suitable for industrial applications, is characterized by the resistive “Single-touch” display in 4:3 format (from 8 ”to 19”) and by the Windows 10 IoT operating system; the “Multi-Touch” version, more suitable for civil applications, is characterized by the capacitive multi-touch display in 16:9 format (from 11 ”to 24”) and the Windows 10 IoT operating system. Completely fanless, PClog products are equipped with Intel Celeron J1900 Quad Core 2000 MHz processors and provide up to four USB interfaces, two Ethernet interfaces and four RS232 serial interfaces.

All the PCs of the PClog family can be provided in combination with the licenses for the use of the SCADA software Winlog Pro and Evo, to offer the power and versatility of an industrial PC with SCADA platform at the price of an operator panel.

Designed specifically for industrial applications, all PClog PCs are equipped with the Windows 10 IoT operating system, which offers remarkable advantages in terms of memory (reduced footprint), speed (faster boot and logon) and reliability (write memory protection).
