SS8000 SERIES

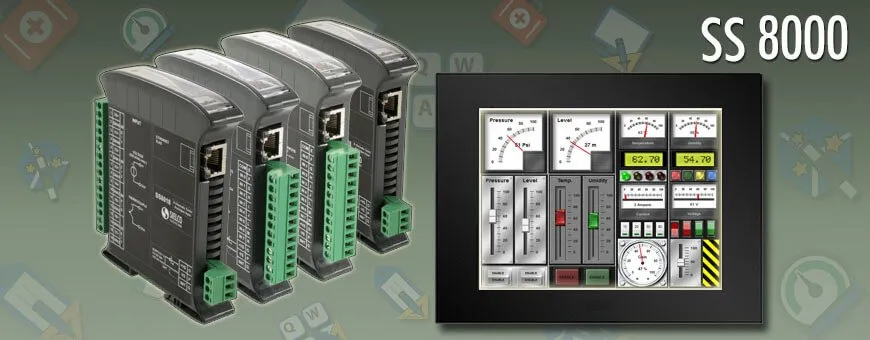

SS8000 SERIES – I/O modules with Modbus TCP and Webserver

Webserver I/O Modules

SS8000 includes a series of data acquisition modules, suited for DIN rail mounting, which provide an Ethernet interface with a Modbus RTU/ASCII protocol and an integrated Webserver support.
All devices guarantee highly accurate and stable measurements over time, also in the presence of temperature changes.
A dual Watch-Dog (hardware and software) controls the proper CPU operation and sets outputs to safety values in case of communication failure. Device configuration is provided via software.
The integrated Webserver support allows remotely monitoring of variables status and remotely access to main programming parameters. Signalling leds allow an immediate diagnosis of device operation. The Ethernet network is connected via the RJ45 connector; the electrical signals are connected via plug-in screw terminals.
The full galvanic isolation ensures a good protection against interference present in industrial environments.

Common features

Communication protocol
  • Modbus TCP
Network interface
  • Ethernet 10/100Base-T
Insulation voltage
  • 1500 Vca 50 Hz, 1 min.
    (Input / Output / RS485 / Supply)
Electromagnetic compatibility (EMC)
  • Immunity: conform to EN 61000-6-2
  • Emissions: conform to EN 61000-6-4
Power supply
  • Supply voltage: from 20 to 30 VDC
  • Maximum current consumption: 60 mA @ 24 VDC
  • Polarity inversion protection: maximum 60 VDC
Operating environment
  • Temperature: from -10 to +60 ºC
  • Humidity: from 0 to 90 % (non condensing)
Storage temperature
  • from -40 to +85 ºC (without ice)
Housing
  • Material: self-extinguishing plastic
  • Mounting: on EN-50022 DIN rail
  • Weight: about 160 g


Models

ModelDescriptionDatasheet
SS8014Analog module with 4 RTD inputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8015Analog module with 4 voltage and 4 current inputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8016Analog module with 4 thermocouple inputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8017-IAnalog module with 8 current inputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8017-VAnalog module with 8 voltage inputsdownload englishEN   download italianoIT
 08/24/16   08/24/16
SS8018Analog module with 8 thermocouple inputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8024Analog module with 4 voltage or current outputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8130Digital module with 8 digital inputs and 4 relay outputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8148Digital module with 16 digital inputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8188Digital module with 8 digital inputs and 8 open-collector outputsdownload englishEN   download italianoIT
 06/20/16   06/20/16
SS8580Converter from Modbus TCP Ethernet to Modbus RTU RS485download englishEN   download italianoIT
 06/21/16   06/21/16
